Ruibao Q11 pure electric high-pressure washing is mainly used for washing and maintenance of motorways, non motorways, sidewalks, back streets and alleys, municipal gardens, property communities and other roads. The lower left and right side flushing can be combined with the sweeper. The front high-pressure flushing and multi angle flushing device is used to clean the dirt at the road surface, road kerbs and traffic sign lines. The rear washing cart, washing site and high-pressure water gun can wash and maintain the sections where vehicles are inconvenient to stop.
◆ chassis: the overall riveted chassis of the vertical and horizontal beams of the frame is made of special steel plate for trucks, with high strength, strong bearing capacity, electrophoretic anti rust treatment and corrosion resistance;
◆ body: fully enclosed cab, fully transparent glass on three sides, double doors, front stainless steel bumper, high-quality and high-strength metal body, good line of sight, safe and beautiful;
◆ battery: 12 * 6V / 200ah maintenance free lead-acid batteries and 72V / 450ah lithium iron phosphate battery pack are optional;

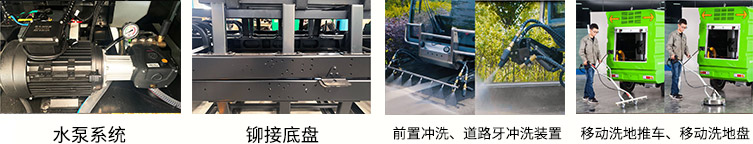

◆ water pump system: compound excitation brushless DC motor cooperates with high-voltage water pump imported from Italy, with stable performance;
◆ flushing device: lower left and right side flushing, front high-pressure discharge flushing and multi angle flushing device, and rear floor washing cart, washing site and high-pressure water gun;
◆ steering system: electric circulating ball steering system;
◆ temperature control system: cold and warm air conditioner (limited to lithium battery version).
| Parameters | Ruibao Q11 pure electric high pressure car wash |
| Voltage / rated power | 72V/19Kw |
| Flushing width | ≥12m |
| Pump pressure | 0-20Mpa |
| Tank capacity | 2100L |
| Mileage | ≥100Km |
| Maximum driving speed | 35Km/h |
| braking distance | ≤10m |
| Climbing ability | ≥25% |
| Turning radius | ≤10m |
| Dimensions | 5235×1720×2285mm |
| Net weight | 2800kg（Lead acid）、2720kg（Lithium battery） |
